IC Chip 5M1270ZF256I5N 5M1270 Complex Programmable Logic Devices 256FBGA
Product Description Of 5M1270ZF256I5N
5M1270ZF256I5N is CPLD - Complex Programmable Logic Devices.
5M1270ZF256I5N is low cost and low power CPLDs, I/Os per footprint.
5M1270ZF256I5N from 40 to 2,210 logic elements(LEs) (32 to 1,700 equivalent macrocells) and up to 271 I/Os.
5M1270ZF256I5N provide programmable solutions for applications such as I/O expansion, bus and protocol bridging, power monitoring and control, FPGA configuration, and analog IC interface.
Specification Of 5M1270ZF256I5N
| Part Number | 5M1270ZF256I5N |
| Programmable Type | |
| Delay Time tpd(1) Max | |
| Voltage Supply - Internal | |
| Number of Logic Elements/Blocks | |
| Number of Macrocells | |
| Number of I/O | |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
Features Of 5M1270ZF256I5N
- Low-cost, low-power, and non-volatile CPLD architecture
- Instant-on (0.5 ms or less) configuration time
- Standby current as low as 25 µA and fast power-down/reset operation
- Fast propagation delay and clock-to-output times
- Internal oscillator
- Emulated RSDS output support with a data rate of up to 200 Mbps
- Emulated LVDS output support with a data rate of up to 304 Mbps
- Four global clocks with two clocks available per logic array block (LAB)
- User flash memory block up to 8 Kbits for non-volatile storage with up to 1000 read/write cycles
- Single 1.8-V external supply for device core
- MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, 1.5-V, and 1.2-V logic levels
- Bus-friendly architecture including programmable slew rate, drive strength, bus-hold, and programmable pull-up resistors

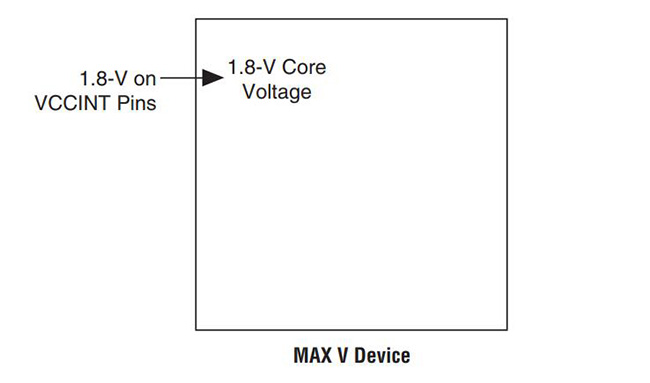

Core Voltage Feature In 5M1270ZF256I5N
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
|
|
IC Chip 5M1270ZF256I5N 5M1270 Complex Programmable Logic Devices 256FBGA Images
|
