Ethernet IC VSC7428XJG-12 11-Port Carrier Ethernet Switches BGA-672 Telecom IC
Premium Products
Ethernet IC VSC7428XJG-12 11-Port Carrier Ethernet Switches BGA-672 Telecom IC
Brand Name :Original Factory
Model Number :VSC7428XJG-12
Certification :Lead free / RoHS Compliant
Place of Origin :CN
MOQ :10
Price :Contact for Sample
Payment Terms :T/T, L/C, Western Union
Delivery Time :5-8 work days
Packaging Details :BGA-672
Part Number :VSC7428XJG-12
Number of Circuits :11
Function :Ethernet Switch
Interface :Serial
Mounting Type :Surface Mount
Operating Temperature :-40°C ~ 125°C
Contact Now
Ethernet IC VSC7428XJG-12 11-Port Carrier Ethernet Switches BGA-672 Telecom IC
Product Description Of VSC7428XJG-12
VSC7428XJG-12 is pin-compatible devices and provide port counts ranging from 11 Ethernet ports to 26 Ethernet ports. Up to 12 ports include a Gigabit copper PHY, and the remaining ports provide single and quad SGMII (QSGMII) and SerDes interfaces. Up to two ports can run at 2.5 Gbps.
Specification Of VSC7428XJG-12
SMD/SMT
Ethernet Switches
100BASE-FX, 1GBASE-X
8 Transceiver
10 Mb/s, 100 Mb/s, 1 Gb/s
2-Wire, JTAG, MIIM, SIO, SPI, UART
1.2 V
Features Of VSC7428XJG-12
Up to 256 QoS and VLAN TCAM entries
256 VLAN egress tagging TCAM entries
Link aggregation (IEEE 802.3ad)
Link aggregation traffic distribution is programmable and based on Layer 2 through Layer 4 information
Wire-speed hardware-based learning and CPU-based learning configurable per port
Independent and shared VLAN learning
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Rapid Spanning Tree Protocol support (IEEE 802.1w)
Multiple Spanning Tree Protocol support (IEEE 802.1s)
Jumbo frame support up to 9.6 kilobytes with programmable MTU per port
Other Electronic Components In Stock
Part Number
Package
STFU23N80K5
TO-220FP-3
STM32WB5MMGH6TR
LGA
ST25DV64KC-JF8D3
UFDFPN-12
ST25DV04KC-IE8C3
UFDFPN-8
ST25DV16KC-JF6D3
UFDFN-12
ST25DV64KC-IE8T3
TSSOP-8
STA8100GATR
LFBGA-81
STM32WB55VGY6TR
100-WLCSP
BLUENRG-132
QFN-32
M24SR02-YDW6T/2
TSSOP-8
ST25DV04KC-JF6D3
UFDFPN-12
S2-LPQTR
VFQFN-24
ST25R3911B-AQFT
VFQFN-32
ST25TV02KC-TFH3
UFDFN-5
ST25DV04KC-JF8D3
UFDFPN-12
BLUENRG-248
QFN-48
ST8500TR
QFN-56
CR95HF-VMD5T
VFQFPN-32
ST95HF-VMD5T
32-VFQFN
M24SR04-GMC5T/2
UFDFPN-8
M24SR02-YMC6T/2
UFDFPN-8
STA8090FG
TFBGA-99
STA8090FGB
TFBGA-99
ST25TA02KB-DC6H5
UFDFPN-5
STA709TR
VFQFPN-64
TDA7708L52TR
VFQFPN-64
STA8089GR
VFQFPN-56
ST25R3918-AQET
32-VFQFN
STM32WBA52KEU6
UFQFPN-32
STM32WL5MOCH6
LGA-92
FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.

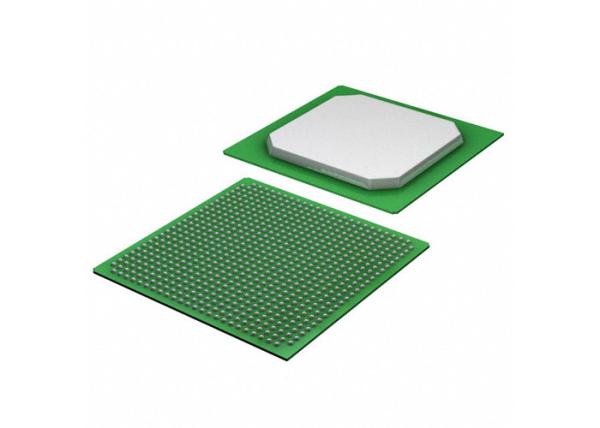

Ethernet IC VSC7428XJG-12 11-Port Carrier Ethernet Switches BGA-672 Telecom IC Images
